The Influence of Altering the Morphology of the First Mandibular Molar on Functional Mandibular Movements: A Pilot Study

A B S T R A C T

Purpose: Altering the tooth morphology is a frequent clinical situation and it requires replacing the lost tooth substance by direct/indirect treatment methods. The purpose of this study is to identify the optimal study group size to quantify the extent to which the change in dental morphology influences the amplitude and path of the mandibular movements at the condylar and dental level.
Materials and Methods: The study was performed on 10 young participants, without associated joint pathology, with healthy complete dentition. The Zebris JMA System (Zebris Medical GmbH, Germany) condylograph were used. The condylar and occlusal parameters were registered, before and after the composite occlusal modification on the right first mandibular molar was made and data were synthesized as Excel Data. The SPSS2 software was used for statistical analyses, a descriptive analysis of the pair differences was performed, Kolmogorov-Smirnova and Shapiro-Wilk tests were applied to verify the normality, paired sample test for 0,05 level of significance and 80% power was applied to determine the proper sample size.
Conclusion: The results show a change in movement parameters at both condylar and dental level: the sagittal motion of the condyle on both sides tends to have a more vertical trajectory, the incisal guidance in protrusion and the guidance in the lateral movement on the modified part are steeper, lateral movement guidance on the other side is shallower, a tendency of retrusion is noted in both condyles. Respecting original dental morphology is essential for functional harmonious integration of the restoration.

Keywords

Tooth morphology, condylography, functional movement, condylar track

Introduction

The relationship between temporo-mandibular disorders (TMD) and occlusion is an intensely debated issue in dentistry, the appropriate adapting capacity being able to compensate possible alterations in function. The mandibular dynamics is composed of three-dimensional movements, each point on the mandible having its own trajectory, functionally correlated with the incision, food shredding, swallowing, speech, etc. It is accepted nowadays that the mandibular movements are influenced by the temporo-mandibular joints, muscles and teeth morphology. The incisors and canines participate in guiding the eccentric movements of the mandible (protrusion and lateral movements), whereas the lateral sector, the molars and the premolars, have a decisive role in establishing the centric positions. Altering the tooth morphology is frequent, through multiple mechanisms, and it requires clinically replacing the lost tooth substance by direct/indirect treatment methods. The decision of making an exact or remodeled (for esthetic reasons, or to correct some modified functions) morphology of the restoration should be made considering the biological system that is already adapted during its growth.

By studying the literature from the last ten years, we have identified some papers that could not establish a solid correlation between altering the occlusal morphology and the joint symptom occurrence [1-4]. Also, there were other papers that have indicated different factors asociated with morphological and functional modification of the temporo-mandibular joint, such as: dental interferences during functional movements, the distance between centric relation and maximum intercuspation greater than 2mm, asymmetrical contacts, maloclussions, bruxism, class II or class III Angle, overbite and overjet greater than 4mm, crossbite, anterior and posterior openbite, premature contacts on the non-working side, the absence of posterior teeth [5-25]. Considering all of this, the purpose of this study is to identify the optimal study group size to quantify the extent to which the change in dental morphology influences the amplitude and path of the mandibular movements at the condylar and dental level.

Materials and Methods

For this study we have selected 10 participants, 3 boys and 7 girls, with ages between 24-25 years, out of 54 students from the Faculty of Dental Medicine, “Carol Davila” University of Medicine and Pharmacy, Bucharest, Romania. Selection criteria for the participants at this study were: clinically healthy, no edentations, no joint pathology. Direct restaurations, edentation, joint disorders, prosthetic restaurations and general pathology were considered exclusion criteria. The students included in this study had signed an agreement to participate.

The study consisted of three steps:
i. During the first meeting, a thorough medical history was completed, followed by an accurate dento-maxillary examination to establish the criteria of selection or exclusion.
ii. In the second meeting the initial occlusal analysis was made, including the mandibular movements; the virtual facebow, the articulator function and the function analysis modules from the Zebris JMA System (Zebris Medical GmbH, Germany) condylograph were used. A paraocclusal fork was adapted to the inferior arch of the patient and it was attached to the facial part of the inferior teeth with bite registration silicone. After complete setting, protrusion and lateral movements were verified and any interference was removed. After that, the face bow was adjusted to the patient head, by stabilizing it on the nasal saddle with the nasal part and connecting the magnetic sensor to the bow (Figure 1). The condyle position (left and right), the infraorbital point and the incisal point are adjusted by the two pointers applied on the second magnetic sensor. This sensor is subsequently attached to the paraocclusal fork. The whole movement protocol from the three prior modules is registered, including protrusive, lateral and opening movements (Figure 2). The articular recordings are made related to the axis-orbitale reference plane.
iii. In the third session, a layer of purple coloured flowable composite was applied on the internal slope of the mesio-buccal cusp of the tooth 4.6, creating an interference on the non-working side in the protrusion movement and also one on the non-working side in the lateral movement (Figure 3). The paraocclusal fork is reattached. The steps from the condilographic analysis followed the same protocol as the previous phase. In the end, the flowable composite was removed with red and yellow diamond stones, and the surface was polished with rubber points and tooth paste with 10 microns particles under magnification.
The data resulted from the records generated by the condylograph were inserted in an Excel file and statistically processed using SPSS2 software.

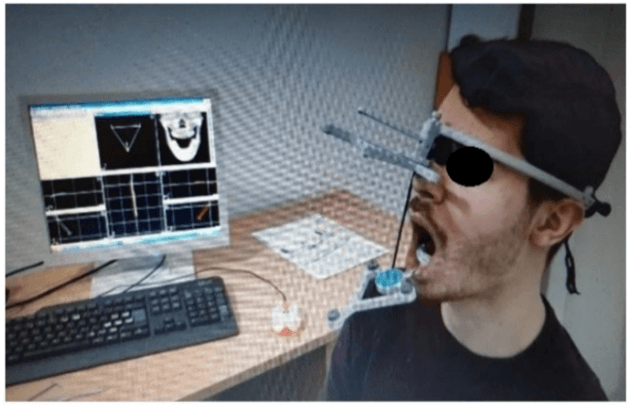

Figure 1: Face bow adjusted on the patient’s head.

Figure 2: Movement protocol registration.

Figure 3: Interference on the non-working side in the protrusion movement and in the lateral movement.

Results

In the statistical analysis, the Kolmogorov-Smirnova and Shapiro-Wilk tests were applied to verify the normality of the differences between the pairs of recordings, before and after the interference was made (Table 1). For the pairs where the distribution was normal, the mean value and standard deviation were determined and the Student T test was applied. No significant differences were registered (Table 2). Also, for these pairs a descriptive analysis of the differences was made.

Table 1: Tests of normality.



Kolmogorov-Smirnova

Shapiro-Wilk

Statistic

df

Sig.

Statistic

df

Sig.

Diff_SCI_LEFT

.197

9

0.200*

.950

9

0.694878

Diff_SCI_RIGHT

.197

9

0.200*

.941

9

0.590975

Diff_BEN_L

.306

9

0.015

.861

9

0.099366

Diff_BEN_R

.519

9

0.000

.390

9

0.000000

Diff_SFT

.265

9

0.069

.799

9

0.019972

Diff_FTL

.307

9

0.014

.862

9

0.100141

Diff_FTR

.215

9

0.200*

.960

9

0.796462

Diff_RL

.357

9

0.002

.782

9

0.012824

Diff_RR

.235

9

0.166

.841

9

0.059411

Diff_SAL

.163

9

0.200*

.930

9

0.485572

Diff_SAR

.246

9

0.124

.857

9

0.087940

Diff_COL

.384

9

0.000

.704

9

0.001586

Diff_COR

.229

9

0.192

.790

9

0.015865

Diff_CRL

.470

9

0.000

.471

9

0.000003

DiFF_CRR

.329

9

0.006

.739

9

0.003997

Diff_ILL

.171

9

0.200*

.939

9

0.566327

Diff_ILR2

.316

9

0.010

.671

9

0.000658

Diff_IO

.197

9

0.200*

.924

9

0.423134

*. This is a lower bound of the true significance.

a. Lilliefors Significance Correction

SCI_LEFT: the articular slope inclination on the left side, SCI_RIGHT: the articular slope inclination on the right side, BEN_L: the Bennett Angle on the left side, BEN_R: the Bennett Angle on the right side, SFT: the sagittal inclination (tilt) of the incisal table, FTL: the frontal left inclination(tilt) of the incisal table, FTR: the frontal right inclination(tilt) of the incisal table, RL: the extent of the retrusion movement on the left side, RR: the extent of the retrusion movement on the right side, SAL: the lateral shift angle of the working condyle on the left side, SAR: the lateral shift angle of the working condyle on the right side, COL: the extent of the condylar displacement in the opening of the mouth on the left side, COR: the extent of the condylar displacement in the opening of the mouth on the right side, CRL: the extent of the condylar displacement in the retrusion movement on the left side, CRR: the extent of the condylar displacement in the retrusion movement on the right side, ILL: the amplitude of the incisal point motion in the lateral left movement, ILR: the amplitude of the incisal point motion in the lateral right movement, IO: the amplitude of the incisal point motion in the opening of the mouth.


Table 2: Paired samples statistics.



Mean

N

Std. Deviation

Pair 1

SCI_LEFT1

27.2444

10

17.00802

SCI_LEFT2

21.7222

10

18.56245

Pair 2

SCI_RIGHT1

27.1222

10

19.36077

SCI_RIGHT2

22.1778

10

18.81248

Pair 3

FTL1

63.8111

10

40.88773

FTL2

50.3111

10

17.74630

Pair 4

FTR1

43.6000

10

36.79103

FTR2

51.9000

10

41.62166

Pair 5

RR1

.5111

10

.76558

RR2

.4111

10

.53489

Pair 6

SAL1

-15.4778

10

26.04509

SAL2

-15.8000

10

27.74847

Pair 7

SAR1

6.6556

10

46.08609

SAR2

36.3000

10

59.32582

Pair 8

ILL1

7.9333

10

2.91762

ILL2

8.1444

10

2.88449

Pair 9

IO1

36.4333

10

7.89367

IO2

32.5667

10

11.41107

Mean: the average values, N: the number of values, Std. Deviation: the deviation, SCI_LEFT1: the articular slope inclination on the left side before creating the interference, SCI_LEFT2: the articular slope inclination on the left side after creating the interference, SCI_RIGHT1: the articular slope inclination on the right side before creating the interference, SCI_RIGHT2: the articular slope inclination on the right side after creating the interference, FTL1: the frontal left inclination (tilt) of the incisal table before creating the interference, FTL2: the frontal left inclination (tilt) of the incisal table after creating the interference, FTR1: the frontal right inclination (tilt) of the incisal table before creating the interference, FTR2: the frontal right inclination (tilt) of the incisal table after creating the interference, RR1: the extent of the retrusion movement on the right side before creating the interference, RR2: the extent of the retrusion movement on the right side after creating the interference,  SAL1: the lateral shift angle of the working condyle (left) before creating the interference, SAL2: the lateral shift angle of the working condyle (left) after creating the interference, SAR1: the lateral shift angle of the working condyle (right) before creating the interference, SAR2: the lateral shift angle of the working condyle (right) after creating the interference, ILL1: the amplitude of the incisal point motion in the lateral movement on the left side before creating the interference, ILL2: the amplitude of the incisal point motion in the lateral movement on the left side after creating the interference, IO1: the amplitude of the incisal point motion in the opening of the mouth before creating the interference, IO2: the amplitude of the incisal point motion in the opening of the mouth after creating the interference.


I The Antero-Posterior Condylar Track (Sagital Condylar Inclination) on the Left and on the Right Side from the Reference Plane

There is a 5 degrees difference on the left side and 6 degrees on the right side, between the mean values, before and after altering the dental morphology. The interference determines a tendency to a more vertical condylar movement in the sagittal plane (Figure 4).

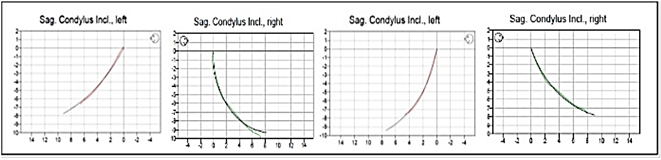

Figure 4: Sagittal condylar inclination right and left side- before and after interference.

II The Incisal Table Tilt

Sagittal tilt of the incisal table increases by 3 degrees after creating the interference, therefore the morphology of the palatal face of the superior frontal teeth will be steeper. Frontal tilt of the incisal table on the left side decreases by 13 degrees after the interference appears, so the guidance in lateral movement on the left side becomes shallower. Frontal tilt of the incisal table on the right side increases by 8 degrees, so the guidance in lateral movement on the right side becomes steeper after the interference on the working side appears (Figure 5).

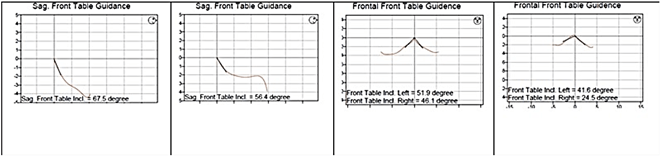

Figure 5: Sagittal and frontal incisal table inclination -before and after interference.

III The Lateral Shift Angle on the Working Condyle

The negative values demonstrate that the working condyle track in the lateral left movement is mainly descendent; the slope increases with 0,4 degrees after making the interference on the molar. The results indicate that the working condyle track in the lateral right movement is mainly ascending; the steepness increases with 30 degrees after making the interference on the molar (Figure 6).

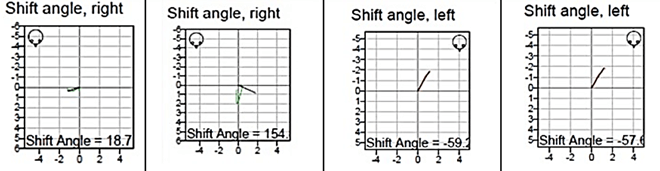

Figure 6: Shift angle, right and left side- before and after interference.

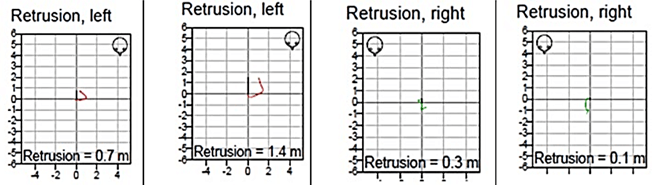

Figure 7: Retrusion movement registration, right and left side- before and after interference.

IV The Condylar Retrusion Movement

The left condyle retrusion increases by 0,2mm, and the right condyle retrusion decreases by 0,1mm after the interference is created (Figure 7).

V The Amplitude of the Incisal Point Motion in the Opening of the Mouth and in the Lateral Movement

The amplitude of the incisal point motion in lateral left movement increases a bit after the interference occurs, whereas in lateral right movement increase in average by 1,3mm (Figure 8). The amplitude of the incisal point motion during the opening increases by 4mm after the premature contact. When applying the student T tests, no significant difference is observed, due to the limited number of recordings. Based on these results, the optimal sample size was determined to obtain statistical significance (Table 3).

Table 3: Paired sample test.



Mean

Std. Deviation

The number of pairs necessary for obtaining relevant differences for 0,05 level of significance and 80% power of test

 Pair 1

SCI_LEFT1-SCI LEFT2

5.52222

15.40023

63

Pair 2

SCI_RIGHT1-SCI_RIGHT2

4.94444

14.08245

66

Pair 3

FTL1 - FTL2

13.50000

34.05921

52

Pair 4

FTR1 - FTR2

-8.30000

46.84280

252

Pair 5

RR1 - RR2

.10000

.92060

668

Pair 6

SAL1 - SAL2

.32222

20.01536

30228

Pair 7

SAR1 - SAR2

-29.64444

52.28265

27

Pair 8

ILL1 - ILL2

-.21111

2.13509

805

Pair 9

IO1 - IO2

3.86667

6.51690

25

Mean: the average values, Std. Deviation: the deviation, SCI_LEFT1: the articular slope inclination on the left side before creating the interference, SCI_LEFT2: the articular slope inclination on the left side after creating the interference, SCI_RIGHT1: the articular slope inclination on the right side before creating the interference, SCI_RIGHT2: the articular slope inclination on the right side after creating the interference, FTL1: the frontal left inclination (tilt) of the incisal table before creating the interference, FTL2: the frontal left inclination (tilt) of the incisal table after creating the interference, FTR1: the frontal right inclination (tilt) of the incisal table before creating the interference, FTR2: the frontal right inclination (tilt) of the incisal table after creating the interference, RR1: the extent of the retrusion movement on the right side before creating the interference, RR2: the extent of the retrusion movement on the right side after creating the interference,  SAL1: the lateral shift angle of the working condyle (left) before creating the interference, SAL2: the lateral shift angle of the working condyle (left) after creating the interference, SAR1: the lateral shift angle of the working condyle (right) before creating the interference, SAR2: the lateral shift angle of the working condyle (right) after creating the interference, ILL1: the amplitude of the incisal point motion in the lateral movement on the left side before creating the interference, ILL2: the amplitude of the incisal point motion in the lateral movement on the left side after creating the interference, IO1: the amplitude of the incisal point motion in the opening of the mouth before creating the interference, IO2: the amplitude of the incisal point motion in the opening of the mouth after creating the interference.


Figure 8: Amplitude of the incisal point motion before and after the interference.

Discussion

Natural tooth morphology is often changed during clinical dental practice with little knowledge of the effects determined on the function of the temporomandibular joint. After doing some research in the literature we could identify just a few similar studies which have analysed the implication of a prematurity artificially created and their methodology was very different [26]. In our study, the morphology modification of the first inferior molar 46, more precise, the internal slope of the mesio-buccal cusp has determined the following tendencies in the condylar tracks and in the inferior incisors motion:

i. The sagittal motion of the condyle on both sides tends to have a more vertical trajectory, the left condyle displacement is wider by 4mm and the right one is limited by 2mm in the opening of the mouth.
ii. The sagittal tilt of the incisal table goes up by 3 degrees, the incisal guidance in protrusion is steeper, the frontal left tilt decreases by 13 degrees after the premature contact occurs, the guidance in the lateral left movement is shallower, the frontal right tilt of the incisal table increases by 8 degrees after the interference, the guidance in the lateral right movement is steeper after the premature contact.
iii. The tendency to retrusion is intensified on both sides.
iv. The amplitude of the incisal point displacement in the opening of the mouth increases by 4mm, in lateral left movement expands a bit, in lateral right movement increases by 1,3mm after the premature contact appears.
v. The lateral shift angle of the working condyle on the left side reveals a predominant descendent steeper motion, whereas the working condyle on the lateral right side describes a sharper angle also, by 30 degrees after the interference occurs with a main ascendent trajectory.
All of the movement parameters have been modified on both sides due to the prematurity on the lateral sector. The results are consistent with those that have found associations with interferences and premature contacts on the non-working side [5-10, 14, 19, 20, 24].

Conclusion

Based on the comparative descriptive analysis of the obtained data, it was observed that by modifying the morphology of the first inferior molar and creating an interference, the movement parameters have presented variations concerning the extent and the direction of the displacement, at both dental and condylar levels. Respecting the initial morphology and adapting it harmonious to the individual functional parameters is a good premise for keeping the balance between the parts of the dento-maxillary system.
