Effect of Energy Drinks on the Inorganic Composition of a Composite Resin Material

A B S T R A C T

Composite resins are used in Dentistry to perform direct aesthetic restorations, and are a material whose properties can be influenced by the diet of the individual, especially in the face of the action of beverages with acid pH, such as energy drinks. The aim of this in vitro study was to evaluate the effect of two energy beverages on the chemical composition of a nanoparticulate composite resin, at two-time intervals. Filtek Z350XT (3M/ESPE) composite resin was used to produce thirty-six specimens (discs) of 6.0mm x 1.5mm dimensions. The specimens were initially immersed in distilled water for 24h at 37ºC and then randomly divided into two groups (n=18); according to the immersion time: 1 month (T1) and 3 months (T2); and in three subgroups (n=6) referring to immersion solutions: distilled water (control) and two energy beverages (RedBull and Monster). The inorganic composition of the specimens was measured by a spectrometry. The data were submitted to two-way ANOVA and Tukey tests. The main inorganic elements of this restorative material were respectively: zirconium (Zr), silicon (Si) and calcium (Ca), which reduced its percentage after immersion time. RedBull was the most active solution, promoting losses of the mineral Si after 1 month of immersion, of Zr, after 3 months, and of Ca after 1 month and after 3 months. Monster influenced losses only in Si, after 1 month. Distilled water did not induce significant losses. Thus, the two energy beverages reduced the inorganic percentage of the nanoparticulate composite resin evaluated in this research.

Keywords

Composite resins, energy drinks, inorganic composition

Introduction

The aesthetics of the smile plays an important role in society, with a composite resin being a widely used dental material for this application, with indication for both anterior and posterior teeth. Its physical and chemical properties are closely related to the quantity and size of their filler components. The higher this percentage, the greater the mechanical strength, microhardness and modulus of elasticity and less contraction of polymerization [1]. However, although manufacturers improve the composition of composite resins, the chemical environment is still an aspect with appreciable influence on the degradation of this material [2]. The hydrophilic characteristics of the resin matrix influence the degree of water sorption and, therefore, acidic drinks can impair the surface integrity of the composite resins, aesthetically and physically, tending to cause erosion on the surface of material, and this degradation is related to the content and distribution of inorganic fillers [2, 3]. Energy drinks are widely consumed, mainly by athletes, to promote well-being and better physical performance, due to the presence of components such as coffee, taurine and glucuronolactone [4-6]. However, the presence of citric acid, high sugar content and low pH of its composition are harmful to teeth and restorations, if consumed routinely [6, 7].

It is relevant to evaluate the effect of acidic beverages, such as energy drinks, on properties of composite resins, such as microhardness, as this, when modified, has consequences such as: lower mechanical resistance, increased roughness, biofilm accumulation, surface degradation and marginal infiltration, which also supports the importance of studies evaluating the acid challenge in the resin load, as it is directly associated with mechanical properties [4, 6-11]. The aim of this study was to evaluate whether the inorganic content of a nanoparticulate composite resin solubilizes in the face of the acid challenge of two similar pH energy drinks, at different immersion times.

Materials and Methods

An in vitro experimental study was carried out in the city of Manaus, at the Dental Research Laboratory of the State University of Amazonas and data collection at the Research Laboratory of the Crowfoot Group on X-Ray Methods at the Superior School of Technology. Thirty-six specimens (discs) of a nanoparticulate composite resin Filtek Z350XT (3M/ESPE; California, EUA), shade A3E, were produced with 6.0 mm (diameter) x 1.5 mm (high) using a incremental technique into the silicon matrix guide. Before the last increment photo-activation, a polyester strip was placed on the material, and a glass slide was pressed, to obtain a flat and homogenous surface (Figure 1). All increments were light-cured using a polymerization unit (Radii Call; SDI - Sidney, Australia), with light intensity of 1.200 mW/cm² for 20 seconds. The inorganic composition of the specimens was evaluated using the X-ray fluorescence by wave dispersion equipment (WD-XRF, Rigaku, model Supermini, palladium tube) with exposure time of 200 s and 200 W of power. Three different solutions were employed in the present study: distilled water (control), and two energy drinks (Red Bull™ and Monster™), whose ingredients are present in (Table 1).

Table 1: Composition and manufacturers of tested solutions.

SOLUTION	COMPOSITION	MANUFACTURER
Monster	Carbonated water, sucrose, glucose, citric acid, natural flavors, 0,4% taurine, sodium citrate, color added, 0.08% panax ginseng root extract, 0.04% L-carnitine L-tartarate, 0,03% caffeine, sorbic acid, benzoic acid, niacinamide, sodium chloride, Glycine max glucuronolactone, inositol, 0,002% guarana seed extract, pyridoxine hydrochloride, sucralose, riboflavin, maltodextrin, and cyanocobalamin.	Monster Beverage Corporation, Corona, California; pH= 3.37
Redbull	Water, sucrose, glucose, acidity regulators (sodium citrates, magnesium carbonate), carbon dioxide, acidifier citric acid, 0.4% taurine, 0.03% caffeine, inositol, vitamins (niacin, pantothenic acid, B6, B12), flavoring, colors (caramel, riboflavin).	Red Bull GmbH, Am Brunnen, Austria; pH=3.54
Distilled water	Chemically pure, free from soluble, clear, colourless and odourless	ASFER, São Paulo, Brasil; pH=7.0
Filtek Z350 XT	UDMA, TEGDMA, BisEMA, particle size: 5-20 nm, Zirconia/nanosilica.	3M ESPE, St. Paul, MN, USA

The chemical analysis was performed after all the specimens have been immersed in distilled water and kept at 37 ºC for 24 h (T0-baseline), to allow the composite resin expansion of after water sorption, a characteristic behavior of this material [10]. Then, the specimens were divided into two groups (n=18) according immersion time in test solutions: one month (T1) and three months (T2). Afterwards, each group was divided again into three sub-groups (n=6) according to the type of solution: distilled water; RedBull and Monster. Further analysis of the chemical content was conducted at T1 and T2 (Figure 2). The immersion cycles consisted of 24 hours, at a temperature of 37 ºC, daily immersion with weekly new solutions changes.

For chemical quantification after immersion, the specimens were carefully dried with absorbent paper, adapted to the condensation silicone matrices and inserted in the equipment (Figure 3). The data obtained were released to the Spectrometer Status program [12]. This chemical analysis method has already been used in other investigations [13]. For the study, two independent variables were used: immersion solution (distilled water, Red Bull, Monster) and immersion time (1 month and 3 months). The two-factor parametric test (bidirectional ANOVA) for repeated measures was used to assess the influence of time (factor 1, with 2 levels) and immersion solution (factor 2, with 3 levels) on the values of the inorganic concentration present in the 3 main chemical elements found: silicon (Si), zirconium (Zr) and calcium (Ca). The Tukey test was used to identify differences between the media (∞ = 0.05).

Results

The spectrometer identified all the inorganic components present in the samples of the Filtek Z350XT nanoparticulate composite resin, in mg / cm². The chemical elements found were magnesium, aluminum, silicon, potassium, calcium, iron, zinc and zirconium. In this work, those with the highest percentage were considered: silicon, zirconium and calcium. The mean and standard deviation of the data are contained in (Table 2). The two-way factor analysis of variance (ANOVA) and the Tukey’s test were performed to analyze the significance of the factors (time and solution) in the concentration of each element. The Tukey test was performed to analyze the averages between immersion times after 1 month and 3 months in the different solutions (Table 3), and the p values can be seen in (Table 4), which shows the statistical interaction between the solutions at different immersion times for each chemical element. According to statistics, the amount of charge found for the element Silicon, in samples immersed in distilled water, was statistically higher compared to Red Bull (p=0.003) and Monster (p=0.03) in the time of 1 month, which indicates there was a loss of this mineral in the samples immersed in energy drinks when compared to the distilled water control solution, with no differences between the different solutions after 3 months.

Table 2: The mean (M) and standard deviation (SD) of the concentrations (in mg / cm²) of the chemical elements as to the solution factor compared to the immersion time factor.

Chemical element	Solution	T¹		T²
		M	SD	M	SD
Silicon	Distilled water	0,3632	0,032085	0,3339	0,046274
	Redbull	0,2850	0,04624	0,3258	0,014742
	Monster	0,3114	0,016795	0,3296	0,03402
Zirconium	Distilled water	0,8570	0,037489	0,9671	0,117383
	Redbull	0,8734	0,077916	0,7989	0,053882
	Monster	0,8485	0,04071	0,8884	0,058173
Calcium	Distilled water	0,2073	0,009312	0,2164	0,014931
	Redbull	0,1848	0,019613	0,1899	0,00974
	Monster	0,1963	0,011584	0,2014	0,01034

For the Zirconium element, there was no difference in the amount of charge over the 1 month time between the solutions; however, after 3 months, in the Red Bull energy drink, it was found in a significantly lower amount compared to distilled water (p = 0.0006). There were no significant changes in this element in the samples immersed in Monster, both between the times and in relation to the other solutions. The calcium concentration found in the Red Bull energy drink was statistically lower in T1 (p = 0.01) and especially in T2 (p = 0.003), when compared to the control solution. No statistical changes for this element in the samples immersed in Red Bull. From the time T¹ to T², the statistical changes found were related to Si in the Red Bull energy drink (p = 0.05), as shown in (Table 4).

Table 3: Statistical differences represented by the Tukey / two way ANOVA test between the factors of time and immersion solution for each element.

Silicon			Zirconium			Calcium
Solution	T1	T2	Solução	T1	T2	Solução	T1	T2
Water	Aa	Aa	Agua	Aa	Ab	Agua	Aa	Aa
Redbull	Bb	Aa	Redbull	Aa	Ba	Redbull	Ba	Ba
Monster	Ba	Aa	Monster	Aa	Aba	Monster	Aba	Aba

*Different lowercase letters in the line and different uppercase letters in the column mean statistical difference by the two way ANOVA / Tukey test.

Table 4: p values for the interaction between solutions and times for each chemical element (p values are for the two-way ANOVA test at α=0.05 level of significance).

Solution	Immersion times according to the element
	Silicon		Zirconium		Calcium
	T¹	T²	T¹	T²	T¹	T²
Water x Redbull	0,0034	0,9114	0,9127	0,0006	0,0146	0,0039
Water x Monster	0,0347	0,9736	0,9755	0,1410	0,3248	0,1313
Redbull x Monster	0,3859	0,9803	0,8104	0,8362	0,2878	0,2928
	Interaction between the times T¹ and T² in the different solutions (p values)
Solution	Silicon		Zirconium		Calcium
Distilled water	0,1480		0,0103		0,2357
Redbull	0,0471		0,0740		0,4971
Monster	0,3632		0,3296		0,5040

Discussion

The results obtained by spectrometry presented as load constituents of the composite resin Filtek Z350XT: magnesium, aluminum, silicon, potassium, calcium, iron, zinc and zirconium, in agreement with the work of Asaka et al., where the load of eight resins was evaluated, using the same method, and 20 chemical elements were identified in different composite resins (Beautifil, Esthet-X, Point 4, Clearfil ST, Solare Solare P, InTen-S Filtek Supreme) [14]. In the Asaka study, Filtek Z350XT resin was not studied and it differs from the resins evaluated in the author's study by the presence of magnesium and by presenting zirconium as the highest concentration of inorganic particles. The distilled water did not interfere in the load of the evaluated chemical elements. Similar in vitro studies also used distilled water as a control group to assess the interference of acidic media in various resin properties, such as: color stability, changes in surface roughness, microhardness and resistance to flexion [2, 7, 10, 15].

The properties of composite resins, once altered, result in deformation in the composition of the material, since the erosive effect of the acid medium acts by degrading the resin matrix and exposing these particles, something that directly implies the surface roughness of the composite resin and, subsequently, in its microhardness [16]. Energy drinks, according to the work of Cavalcanti et al., have a very acid pH, ranging from 1.52 to 5.5, which would be a direct cause, for the long-term, solubilization of inorganic content [7]. Silicon (Si) corresponds to silica, found in dispersed form or in silica-zirconia nanocomplexes, which have been mentioned in some studies as fundamental to the mechanical strength of composite resin materials [17, 18]. Here, the elements Si, Zr and Ca, of the composite resin (Filtek Z350XT), solubilized, which suggests a possible reduction in the mechanical strength of the material.

There are many studies evaluating the negative effects of the Red Bull energy drink on the color stability of composite resins. The study by Ahmadizenouz et al., have investigated the effects of two energy drinks (Hype and Red Bull), on color change (∆E) of two methacrylate-based (Filtek Z250 – 3M; Filtek Z350XT – 3M) and a silorane-based composite resin (Filtek P90 – 3M) after 7 and 30 days, and the results showed that a prolonged immersion time in all solutions increased ∆E values of all composites [1]. In the study of Erdemir et al., the effects of sports and energy drinks were evaluated on the surface hardness of different restorative materials (Compoglass F-Ivoclar Vivadent; Filtek Z250 – 3M; Filtek Supreme – 3M and Premise - Kerr) [10].

Surface hardness was measured at baseline, after 1 week, 1 month and 6 months. Surface hardness of all restorative materials was significantly affected by both immersion solution and immersion period. All tested solutions induced significant reduction in surface hardness of the restorative materials over a 6-month immersion period. Additionally, even when composite resin materials are exposed to energy drinks for a short-term period (one month) a significantly decreased surface hardness is expected [19]. The methodology of these theses researches differs from that used in the present study by the time of exposure of the specimens to the solutions, being one hour a day. Nevertheless, the achieved results have shown a meaning reduction in the content of the chemical elements of the composite resin exposed to energy beverages, even with short-term period to acid exposition.

The Monster energy drink, despite being a pH = 3.65 drink, similar to RedBull (pH 3.67), did not show statistically significant variations in the elements Zr and Ca in the Filtek Z350XT resin. Considering the influence of inorganic filler particles in the physicochemical and mechanical properties of composites, it is essential for the dental surgeon to reinforce the awareness of patients after the restorative treatment, regarding the risks of excessive consumption of energy drinks (beverages with acidic character), for the maintenance and treatment longevity.

Conclusion

A solubilization can compromise the properties of the composite resin in the long term. In the inorganic chemical quantification of Filtek Z350XT composite resin, the most prevalent chemical elements were zirconium, silicon and calcium, components that provide resistance to the material. Additionally, the results have shown a significant reduced concentration to these elements after energy drinks challenge exposition, especially with Red Bull. Nevertheless, it is also suggested to carry out new studies, with other types of composite resins, as only nanoparticulate composite resin was used in the present study.

Conflicts of Interest

None.

Acknowledgements

We thank the Foundation Support of Research the State of Amazonas, FAPEAM, for the award of the scientific initiation grant, during the research developed in 2018-2019.

Article Info

Article Type

Research Article

Publication history

Received: Mon 06, Jul 2020
Accepted: Sat 18, Jul 2020
Published: Sat 25, Jul 2020

Copyright

© 2023 Danielson Guedes Pontes. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited. Hosting by Science Repository.
DOI: 10.31487/j.DOBCR.2020.03.09

Author Info

Lara Pepita de Souza Oliveira Diego Ferreira Regalado Danielson Guedes Pontes Cláudia Cândida Silva João Víctor Monteiro de Albuquerque Hugo Felipe do Vale

Corresponding Author

Danielson Guedes Pontes
Operative Dentistry, State University of Amazonas, Manaus, Amazonas, Brazil

Figures & Tables

Table 1: Composition and manufacturers of tested solutions.

SOLUTION	COMPOSITION	MANUFACTURER
Monster	Carbonated water, sucrose, glucose, citric acid, natural flavors, 0,4% taurine, sodium citrate, color added, 0.08% panax ginseng root extract, 0.04% L-carnitine L-tartarate, 0,03% caffeine, sorbic acid, benzoic acid, niacinamide, sodium chloride, Glycine max glucuronolactone, inositol, 0,002% guarana seed extract, pyridoxine hydrochloride, sucralose, riboflavin, maltodextrin, and cyanocobalamin.	Monster Beverage Corporation, Corona, California; pH= 3.37
Redbull	Water, sucrose, glucose, acidity regulators (sodium citrates, magnesium carbonate), carbon dioxide, acidifier citric acid, 0.4% taurine, 0.03% caffeine, inositol, vitamins (niacin, pantothenic acid, B6, B12), flavoring, colors (caramel, riboflavin).	Red Bull GmbH, Am Brunnen, Austria; pH=3.54
Distilled water	Chemically pure, free from soluble, clear, colourless and odourless	ASFER, São Paulo, Brasil; pH=7.0
Filtek Z350 XT	UDMA, TEGDMA, BisEMA, particle size: 5-20 nm, Zirconia/nanosilica.	3M ESPE, St. Paul, MN, USA

Table 2: The mean (M) and standard deviation (SD) of the concentrations (in mg / cm²) of the chemical elements as to the solution factor compared to the immersion time factor.

Chemical element	Solution	T¹		T²
		M	SD	M	SD
Silicon	Distilled water	0,3632	0,032085	0,3339	0,046274
	Redbull	0,2850	0,04624	0,3258	0,014742
	Monster	0,3114	0,016795	0,3296	0,03402
Zirconium	Distilled water	0,8570	0,037489	0,9671	0,117383
	Redbull	0,8734	0,077916	0,7989	0,053882
	Monster	0,8485	0,04071	0,8884	0,058173
Calcium	Distilled water	0,2073	0,009312	0,2164	0,014931
	Redbull	0,1848	0,019613	0,1899	0,00974
	Monster	0,1963	0,011584	0,2014	0,01034

Table 3: Statistical differences represented by the Tukey / two way ANOVA test between the factors of time and immersion solution for each element.

Silicon			Zirconium			Calcium
Solution	T1	T2	Solução	T1	T2	Solução	T1	T2
Water	Aa	Aa	Agua	Aa	Ab	Agua	Aa	Aa
Redbull	Bb	Aa	Redbull	Aa	Ba	Redbull	Ba	Ba
Monster	Ba	Aa	Monster	Aa	Aba	Monster	Aba	Aba

*Different lowercase letters in the line and different uppercase letters in the column mean statistical difference by the two way ANOVA / Tukey test.

Table 4: p values for the interaction between solutions and times for each chemical element (p values are for the two-way ANOVA test at α=0.05 level of significance).

Solution	Immersion times according to the element
	Silicon		Zirconium		Calcium
	T¹	T²	T¹	T²	T¹	T²
Water x Redbull	0,0034	0,9114	0,9127	0,0006	0,0146	0,0039
Water x Monster	0,0347	0,9736	0,9755	0,1410	0,3248	0,1313
Redbull x Monster	0,3859	0,9803	0,8104	0,8362	0,2878	0,2928
	Interaction between the times T¹ and T² in the different solutions (p values)
Solution	Silicon		Zirconium		Calcium
Distilled water	0,1480		0,0103		0,2357
Redbull	0,0471		0,0740		0,4971
Monster	0,3632		0,3296		0,5040

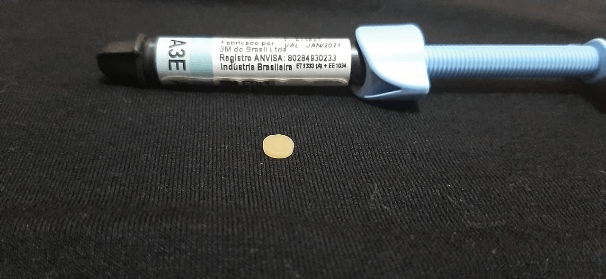

Figure 1: Specimen of the nanoparticulate composite resin Filtek Z350 A3E, brand 3M ESPE.

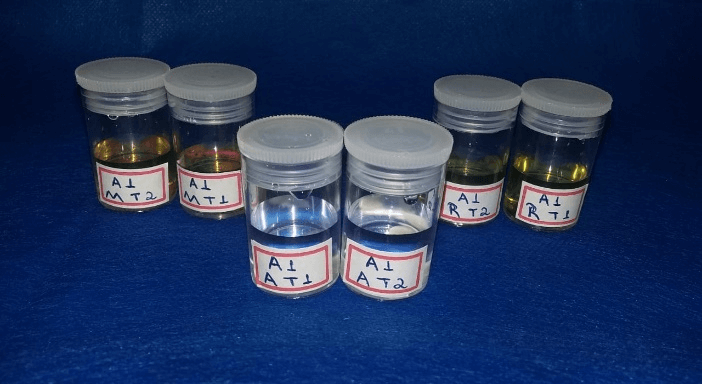

Figure 2: Identification of the sample groups, A1 being the first sample, followed by the identification of the solution and its corresponding immersion cycle.

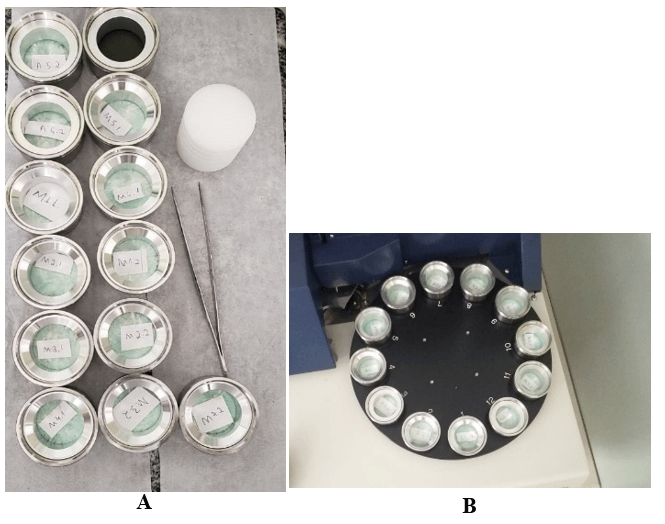

Figure 3: A) Accommodation of the condensation silicone matrices, identified and containing the specimen, in the spectrometer equipment sample holder. B) Specimens positioned in the equipment.
